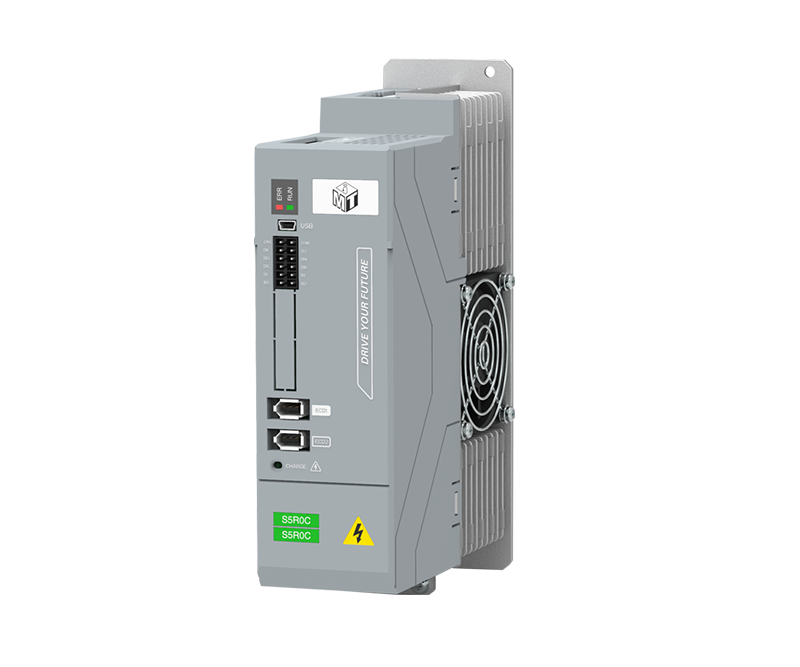

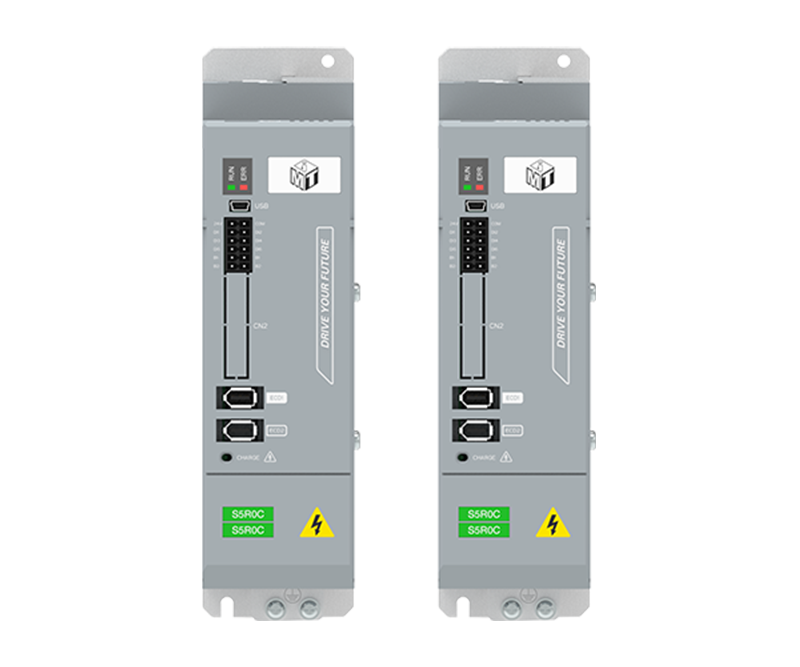

D800 Series Standalone EtherCAT Single/Dual-axis Servo Drive
Engineered specifically for low-axis-count deployments or additional axis expansion beyond standard configurations, the D800 and D800Pro feature expanded onboard I/O resources. When paired with the M800 series, they greatly extend the overall application scope of the product lineup.
Against the M800 series, these drives deliver improved cost-effectiveness for low-axis applications with a 30% smaller footprint. The built-in integrated power supply removes the requirement for an external dedicated power module.
As standard configuration, D800Pro integrates STO (Safe Torque Off), equipped with 14 digital inputs & 8 digital outputs. It supports full closed-loop differential ABZ pulse input and pulse frequency division output, enabling advanced use cases including full closed-loop control.
Features
-
D800
-
Each drive unit supports flexible single-axis or dual-axis configuration
-
Power range: 50W ~ 4kW; dual-axis model features higher power density and compact footprint
-
3.5kHz velocity loop bandwidth for upgraded dynamic performance
-
Comprehensive multi-protection functions guarantee stable operation in harsh environments
-
Optimized air duct design realizes ultra-low temperature rise
-
D800Pro
-
Flexible single/dual-axis setup per individual unit
-
Rated power from 50W to 4kW; dual-axis variant delivers superior power density with reduced size
-
Full closed-loop differential ABZ pulse input plus pulse frequency division output
-
Integrated STO (Safe Torque Off) for enhanced operational safety
-
Equipped with 14DI / 8DO, every channel configurable independently
-
3.5kHz velocity loop bandwidth for improved dynamic performance
-
Full-range protective functions enable high reliability under severe working conditions
-
Custom air duct structure keeps temperature rise to a minimum
Specification
| D800 vs D800Pro Resource Configuration | |||||||||
Model | Digital Input (DI) | Digital Output (DO) | ABZ Pulse Input | Divided Pulse Output | STO | ||||
D800 | 6-CH | 2-CH | NO | NO | NO | ||||
D800Pro | 14-CH | 8-CH | YES | YES | YES | ||||
| D800 Series Single/Dual-Axis Fieldbus Servo Drive Specifications | |||||||||
D800 & D800Pro | S015 | S8R0 | S5R0 | S2R0 | |||||
Continuous output current [A] rms | 15 | 8 | 5 | 2 | |||||
Peak Current (3s) [A rms] | 45 | 24 | 15 | 6 | |||||
Main circuit power supply | Single-phase / Three-phase AC220V (-15%~+10%),50/60Hz | ||||||||
Overvoltage level | ||| | ||||||||
