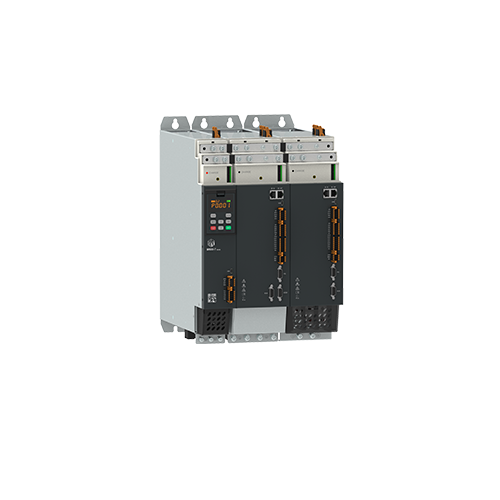

M900-T Series Modular Multi-axis High & Medium Power EC Bus Servo Drive（380V)

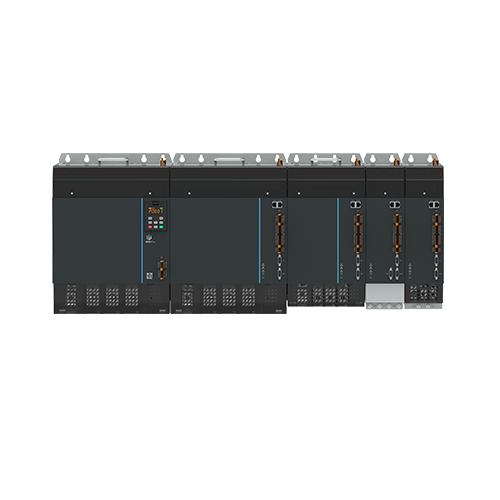

Medium & High Power Modular Bus Servo System

The M900-T Series is a high-performance platform developed by Motong Transmission to meet medium and high power multi-drive servo requirements. It delivers efficient and reliable solutions for a wide range of industrial applications, including wire cutting, powder metallurgy, die cutting, all-electric injection molding machines, die-casting machines, all-electric bending machines, large manipulators, forging presses, servo turret punch presses, steel plate cutting, and handling machinery.

Inquiry Download

Features

Safety & Reliability

1.Compliant with EU CE and RoHS environmental certifications.

2.Adopts a unique DC bus architecture to completely eliminate crosstalk between conventional standalone servo drives.

3.Built-in standard STO (Safe Torque Off) function, with multi-axis safety-linked emergency stop mechanism and IP25 protection degree.
Diverse Control Algorithms

1.Built-in gantry synchronization with a 62.5μs control cycle.

2.Supports pressure closed-loop, tension closed-loop, and full position closed-loop control.

3.Multi-axis coordination enables high-speed data sharing between modules at 400MHz.
High Efficiency & Energy Saving

1. Adopting a common DC bus architecture, it reduces average energy consumption by approximately 30%. Typical savings: 40%~60% for all-electric injection molding, and 30%~40% for printing applications.

2. Ultra-low braking loss greatly lowers the internal temperature of the electrical cabinet and reduces the failure rate of internal electrical components.
Easy Commissioning

1. Equipped with multiple commissioning tools, supporting three debugging methods: PC software, keypad, and master station network.

2. Single USB Type‑C port enables one‑click copying and downloading of multi‑axis parameters for batch configuration replication.

3. The streamlined and efficient PC software generates multi‑axis motion curves to quickly pinpoint process issues and optimize control cycles.
Cost Savings

1. Space Cost: Saves 30%~50% of electrical cabinet space and improves space utilization.

2. Maintenance Cost: The built-in black box function accurately locates intermittent faults, cuts troubleshooting time and downtime losses, and greatly reduces maintenance costs in unattended operation scenarios.

3. Operating Cost: Delivers an average energy saving rate of approximately 30%, helping end users reduce costs and boost efficiency.
Motor

1. Self-developed 25-bit optical absolute encoder with potting process, featuring low temperature rise and low electromagnetic noise.

2. IP65 high ingress protection rating.

Specification

Item	Specification
Power Supply Voltage	Three-phase AC 380V ~ 480V (-15% ~ +10%)
Control Voltage	DC24V±10%
Power Range	Power module: 22 ~ 180kW; Drive module: 0.4 ~ 135kW
Control Mode	EtherCAT: Minimum communication cycle 125µs, max. cable length 100m, supports 100Mbps full-duplex operation PROFINET: Max. 100Mbps rate, max. distance 100m
Commissioning Software	IMOTO_Stuio
Encoder Port	Absolute encoder; Full-closed loop interface supports absolute encoder and ABZ encoder
Debugging Interface	Single USB port
DI /DO	10-channel DI / 6-channel DO (DO supports NPN and PNP wiring), supports EtherCAT bus access
AI /AO	3-channel AI (AI3 is 16-bit high-precision AI, supporting voltage and current input)2-channel AO (1-channel voltage output, 1-channel current output)
Brake	Built-in brake relay
STO Interface + Safety Circuit	2 channels (Safe Torque Off)
Installation	Common DC bus installation, optional through-wall mounting kit
Cooling Method	Forced air cooling
Operating Ambient Temperature	-10℃~45℃
Humidity	10% ~ 90% RH (non-condensing)
Storage Temperature	-20℃~65℃
Storage Humidity	10% ~ 90% RH (non-condensing)
Altitude	≤ 1000m
Protection Rating	Drive body: IP20; Control cabinet protection: IP54
Certifications	CE ,ROHS
