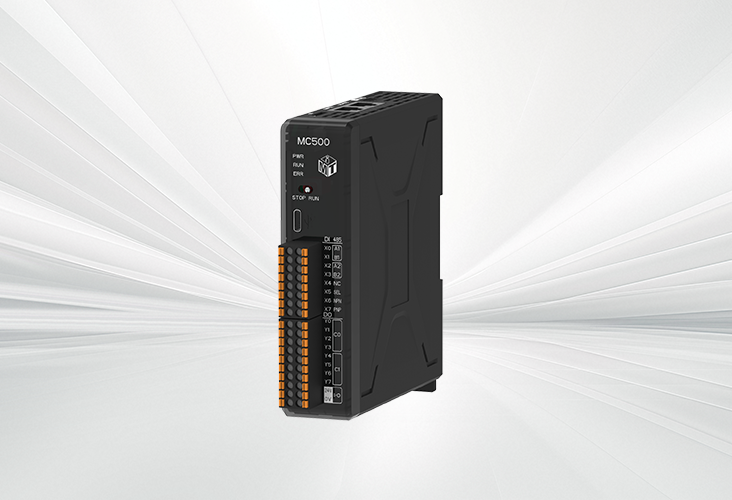

High Efficiency & Controllable Smart Drive for Automation | MC500 Series Programmable Controllers
To meet control development demands for standalone automated machinery and combined production lines, Motong has launched the MC500 Series standard programmable controllers. Equipped with dual development platforms, comprehensive communication capabilities and high-performance computing power, the series delivers standardized, efficient control solutions for automation applications across diverse industries.
The MC500 Series programmable controllers support dual development modes: MT’s proprietary development platform . Compliant with IEC 61131-3 programming standards, they come with abundant function libraries, SoftMotion motion control functions and modular programming workflows. Compatible with multiple industrial communication buses including EtherCAT, EtherNet, Modbus TCP/IP and up to 2 channels of RS485, the MC500 can be paired with Motong’s multi-axis bus servo systems and remote I/O modules. Widely deployed on CNC equipment, packaging machinery, printing machines, semiconductor equipment, medical automation devices and production lines, it significantly boosts production efficiency and control precision, facilitates standardized project development and management, and cuts staff training costs.
Comprehensive Hardware Interfaces with Outstanding Expandability
The controller integrates 8 DI channels, 8 DO channels, 1 Ethernet port, 1 EtherCAT port and 2 RS-485 serial ports, supporting connection of up to 192 slave devices. The abundant hardware interfaces deliver excellent expansion flexibility.
Universal Software Platform to Boost Efficiency & Reduce Costs
The user-friendly software drastically cuts project development man-hours and accelerates engineering progress.
Powerful Bus Motion Control for High-Precision Multi-Axis Synchronization
Built-in EtherCAT bus motion control supports up to 32 servo axes and 32 electronic cam axes with a synchronization cycle of 4 ms. Its high-speed, high-precision motion performance satisfies large-scale multi-axis control requirements.
High-Spec Hardware Computing Power for Complex Control Logic
Powered by a 1.2 GHz quad-core processor, the controller executes instructions and processes data at accelerated speeds. Equipped with 1 GB RAM, it shortens system boot-up and program loading time, while the 16 GB storage capacity accommodates large programs and mass data storage to handle intricate control logic and intensive data processing.
The MC500 Series programmable controllers cater to control requirements of standalone automated machines and combined production lines across various industries. When matched with Motong bus servos and remote I/O modules, they form complete integrated solutions to standardize equipment development and lower training expenses. Moving forward, MT will continue to deepen its layout in automation control, optimize product performance consistently and empower industrial development.
