MT R910 – What Are The Features Of The Robot-Specific Multi-Axis Integrated Servo Drive?
MT R910 series robot-specific multi-axis integrated servo drive covers a power range of 50W~3.8kW with full 4-6 axis support. It is suitable for all low-power robots for welding, spraying, grinding, sorting and packaging applications.

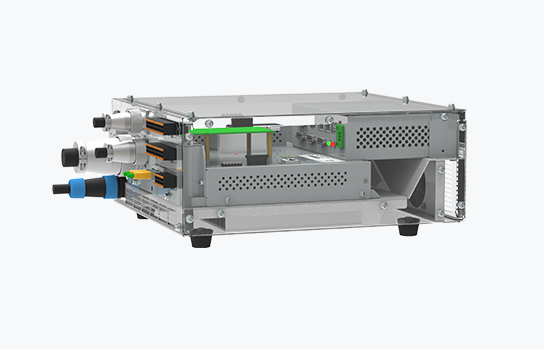

Wireless Harness Inside Cabinet, Lower Cabinet Cost & Improved Reliability
The R910 adopts an innovative design for hard connections inside the cabinet. It eliminates most cables for servo power output, encoder, brake and IO, reducing cabinet cost and improving reliability.
Independent Air Duct Design, Through-Mount Installation & Excellent Protection Performance
The product features an independent air duct design and supports through-wall mounting. It can effectively resist oil contamination and dust for superior protection. The air duct delivers excellent heat dissipation, improving environmental resistance and extending the overall service life of the equipment. The product has an IP20 protection rating. It can easily reach IP54 when fitted with an electrical cabinet IO terminal protective cover.

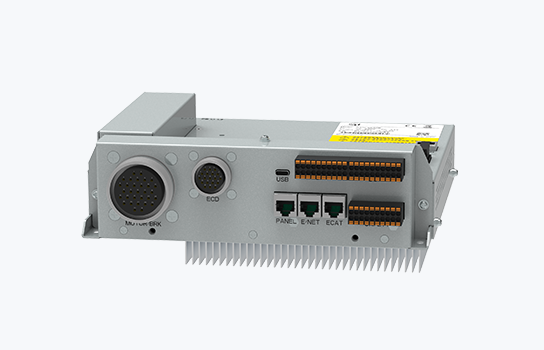

Built-in Advanced Safety Functions with Comprehensive Safety Loops and IO Interfaces
The R910 incorporates high-end functions including dynamic braking and STO (Safe Torque Off). It is equipped with safety circuit interfaces for robot emergency stop, safety enable, safety switches, light curtains and other safety applications. Dual-channel STO IO is standard. It comes with 16DI/DO as standard, expandable to 32DI/DO, eliminating the requirement for conventional IO boards inside the electrical cabinet.

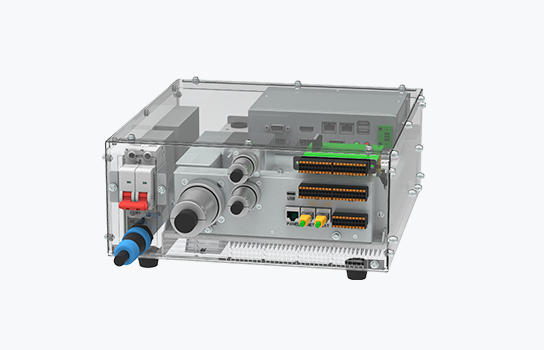

Compact Multi-Axis Integrated Design, High Power Density & Reduced Cabinet Installation Space
The compact multi-axis integrated design improves space utilization. It enables the industry’s smallest cabinet footprint and higher power density.
Application Scope
Motong R910 series robot-specific multi-axis integrated servo drive covers a power range of 50W~3.8kW with full 4-6 axis support. It applies to all low-power robots for welding, spraying, grinding, sorting and packaging.
Conclusion
The R910 series robot-specific multi-axis integrated servo drive integrates multiple core features to deliver an all-in-one multi-axis servo drive solution for low-power robots.
