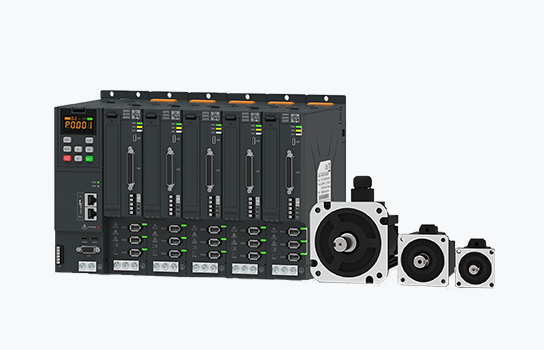

M900 Series Modular Multi-Axis Bus Servo: High-Density Integration Empowers Automation Cost Reduction & Efficiency Improvement
As automation equipment develops toward miniaturization, integration and low-cost operation, traditional standalone servo drives expose prominent drawbacks including cumbersome wiring, large footprint, poor working condition adaptability and high maintenance costs. To solve these industry upgrading pain points, the M900 modular multi-axis bus servo adopts a standardized modular architecture, integrating outstanding advantages in safety, performance, functionality, integration and energy saving, delivering a more practical motion control solution for mass industrial automation production.
1. Superior Safety & Reliability for Complex Industrial Conditions
The entire M900 series has passed EU CE and RoHS certification, fully meeting global market access standards. Equipped with a unique DC bus architecture, it completely eliminates inter-axis crosstalk common in traditional standalone servo systems and greatly improves overall operational stability. It supports a wide voltage range of AC 155V~250V, resisting voltage fluctuations from unstable power grids.

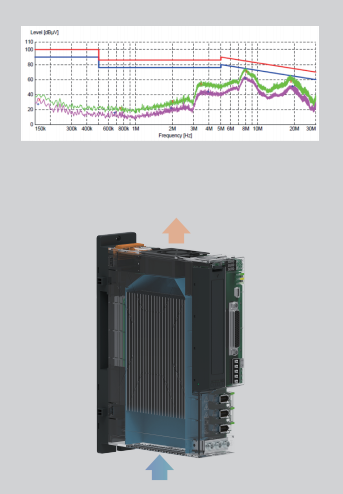

Designed with comprehensive safety configurations, the M900 comes standard with dynamic braking and multi-axis safety emergency stop mechanism, with optional STO (Safe Torque Off) function. Featuring IP40 protection grade and an independent air duct design, it delivers excellent resistance to oil pollution, dust and moisture, ensuring stable operation in harsh workshop environments.
2. Premium Performance for High-Speed & High-Precision Motion Control
Built with mature hardware control architecture, the M900 delivers excellent dynamic response capabilities: 125μs bus communication refresh cycle, 3.8kHz speed loop bandwidth, and 62.5μs internal control cycle. The ultra-fast computing and response speed steadily support high-speed, high-precision and highly synchronous equipment motion, fully meeting stringent precision requirements of automated manufacturing processes.
3. Versatile Functions for Diverse Customized Automation Scenarios
The M900 features strong universal compatibility, supporting rotary motors, DD motors and linear motors. It is built-in with high-precision gantry synchronization (62.5μs control cycle) and full closed-loop functions to greatly enhance motion synchronization and positioning accuracy. Optional onboard PLC is available for flexible configuration. Each drive module is equipped with 16DI+8DO+1AD rich I/O resources, satisfying personalized function development and process expansion needs of various equipment.
4. Ultra-High Power Density & Maximum Cabinet Space Saving

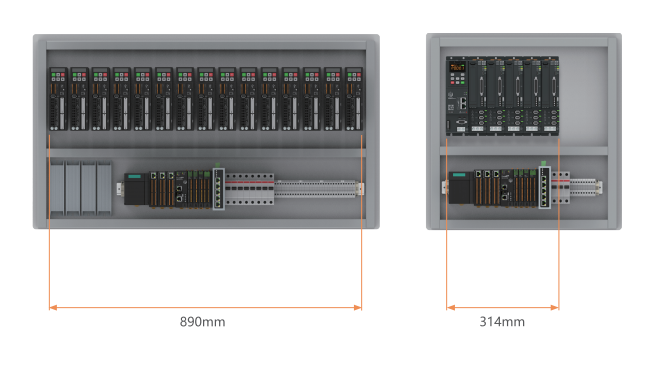

Adopting a high-density modular design, the M900 achieves industry-leading space utilization. A single drive module supports up to 3 axes, and one power module can expand to a maximum of 18 axes. The 15-axis complete unit occupies only the space of an A4-sized sheet.
Compared with traditional standalone servo solutions, the M900 saves 50% cabinet space for 6-axis equipment and up to 70% space for 15-axis equipment. Its highly integrated design incorporates PLC, battery compartment and brake port functions, eliminating a large number of peripheral components such as trunking, terminal blocks, low-voltage devices and braking resistors, realizing an ultra-compact cabinet layout and fitting the miniaturization trend of modern automation equipment.
5. Multi-Dimensional Cost Reduction & Improved Comprehensive Equipment Benefits
In terms of energy saving, the M900 achieves an average power saving rate of 30% with its optimized architecture, effectively reducing long-term operational electricity costs. For on-site deployment, it eliminates external cables, battery boxes, braking resistors and intermediate relays, saving more than 50% of wiring and installation working hours and greatly cutting component and labor costs.
The standardized modular structure improves inventory turnover efficiency. The supporting upper computer software provides multi-axis interpolation, multi-dimensional surface processing and quadrant point debugging functions, enabling quick process troubleshooting and lower debugging costs. Adopting a screw-free modular design, it simplifies later equipment inspection and replacement, significantly reducing maintenance costs.
Conclusion
The M900 modular multi-axis bus servo takes safety and stability as the foundation, high-performance operation as the core, and high integration as the highlight, covering functional expansion, space optimization and full-lifecycle cost reduction. It is widely applicable to 3C manufacturing, new energy, precision machining, logistics sorting and other automation industries. For equipment manufacturers, it serves as a cost-effective and competitive motion control solution to optimize product structure and enhance market competitiveness.
