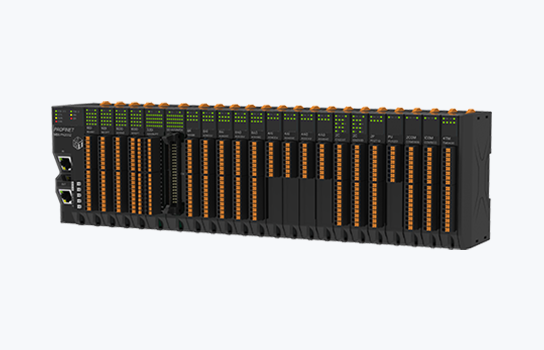

MB6 Series Plug-in (Modular) Remote I/O, Flexible Configuration for Multiple Industrial Buses
Troubled by cumbersome cabinet wiring and limited point expansion? The MB6 ultra-slim modular bus I/O offers an effective solution. This series covers signal modules including digital, relay, analog, pulse output, encoder, temperature and communication types, enabling free configuration on demand. The complete system consists of coupler modules, I/O function modules, repeater power modules, common terminal modules and end caps. It supports mainstream communication protocols: EtherCAT, PROFINET, EtherNet/IP, CC-Link, CC-Link IE Field Basic and Modbus TCP.
Benefiting from its slice-style modular design, the MB6 delivers outstanding performance in space efficiency, configuration flexibility, installation efficiency and real-time response.
Core Advantages of MB6 Series Plug-in (Modular) Remote I/O
１．Ultra-slim slice design to save cabinet space
Featuring a compact slice form factor with a thickness of only 15 mm, the modules support high-density arrangement. Suitable for compact control cabinets and distributed installation beside machinery to optimize internal cabinet layout.
２．Diverse module portfolio for flexible configuration
A wide selection of I/O modules with various types and channel counts is available. During commissioning or production line retrofits, modules can be added or removed directly to adjust signal types and channel quantities without replacing the entire I/O station.
3. Fast installation & maintenance to reduce on-site working hours
Snap-on DIN rail structure allows easy module mounting, removal and maintenance. Screwless spring terminal blocks simplify wiring work. A single coupler supports up to 32 I/O modules, meeting the requirements of large and medium-sized distributed signal stations.
4. High-speed bus communication with excellent synchronization accuracy
It supports 100 Mbps full-duplex transmission with a minimum cycle time down to 125 µs. Equipped with a high-precision distributed clock, it achieves synchronization jitter<1 µs, well suited for high real-time applications such as multi-axis synchronization and motion control.
5. Multi-layer hardware protection for reliable operation
Reverse polarity protection is implemented on power inputs. Short-circuit protection is provided for transistor digital outputs and analog voltage/current outputs, lowering failure risks caused by miswiring or short circuits and ensuring stable equipment operation.
6. Unified hardware platform to simplify selection and supply chain management
Different fieldbus types can be supported simply by switching the coupler on the same hardware platform. There is no need to stock multiple I/O series, which streamlines material management, technical training and spare parts inventory.
Typical Applications
The MB6 is ideal for motion control equipment, CNC machine tools, lithium-ion production lines, packaging machinery, woodworking machines, conveyor lines, robot workstations and semiconductor auxiliary equipment. It supports both centralized cabinet mounting and remote distributed signal acquisition.
Summary
With an ultra-slim modular architecture, comprehensive signal options, microsecond-level synchronization and robust hardware protection, the MB6 Plug-in bus I/O provides a flexible, scalable distributed I/O solution.
