G920 Series General-purpose All-in-one Drive,AC220V,3~6 Axes (Screw Terminal Version)

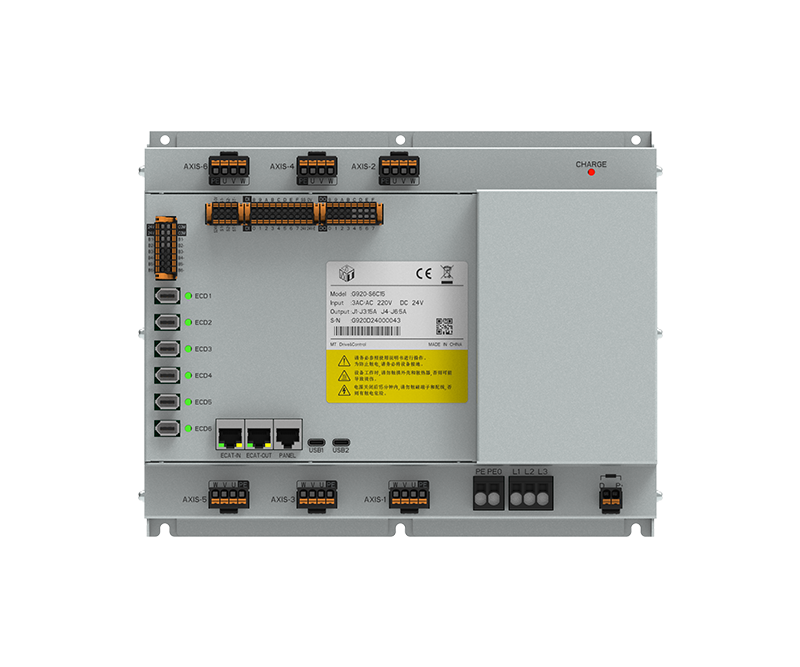

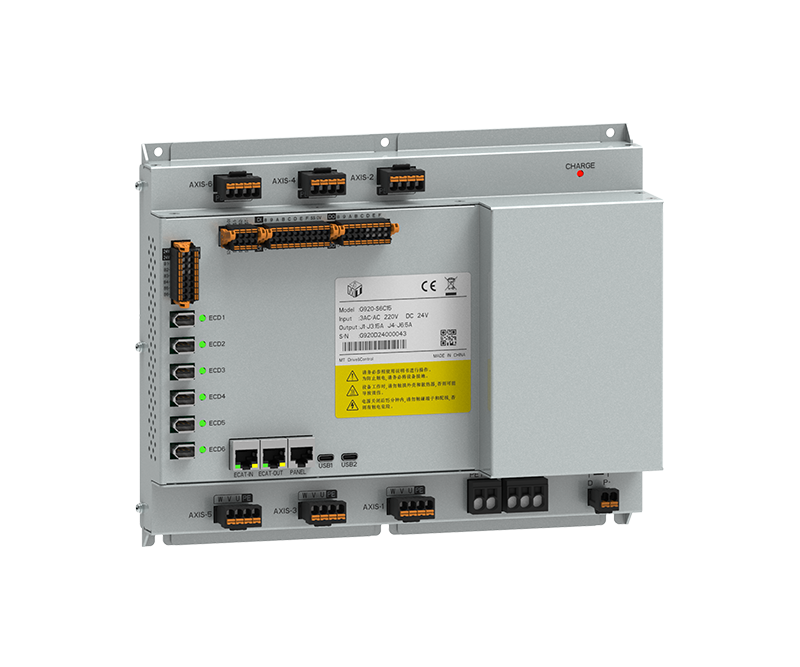

Adopting compact integrated multi-axis architecture, the G920 servo drive features a smaller footprint versus conventional modular multi-axis servo drives, significantly saving cabinet installation space and optimizing electrical cabinet layout. Designed for through-panel mounting with an independent isolated cooling duct, it achieves effective thermal isolation and dust protection between cabinet interior and exterior. Excellent environmental resistance ensures stable operation under harsh working conditions. Users can flexibly configure power modules ranging from 3 to 6 axes; with native support for the mainstream EtherCAT fieldbus protocol, the series is widely deployed in bus-controlled automation equipment including all-electric bending machines, high-speed turret punch presses, laser processing & vision positioning systems, high-speed tapping centers and small injection molding machines.
Features
-
High Safety & Reliability
Dynamic braking is standard for 220V models; STO (Safe Torque Off) function is equipped across the full product line. -
Easy Commissioning
Multiple debugging access via upper PC and Ethernet connection. Built-in auto parameter identification function minimizes setup work; only basic parameter configuration is required for startup to boost commissioning efficiency. -
Compact Flat Construction
Flat integrated multi-axis design combined with through-panel mounting and independent air duct delivers superior environmental adaptability, fitting diverse cabinet types for space-efficient installation. -
Fast Dynamic Response
Compliant with mainstream EtherCAT fieldbus: max. transmission speed up to 100Mbps, minimum communication cycle down to 125μs. -
Abundant Interfaces
Brake drive terminals; standard 16-point DI/DO; dedicated safety circuit interfaces for emergency stop, safety door interlock and safety enable signals.
Specification
Category | Item | Description |
Basic Functions | Voltage Rating | Single/3‑phase AC220V, |
Power Range | 50W ~ 18.5kW | |
Dynamic Braking | Built‑in dynamic braking for 220V models; external dynamic braking optional for 380V variants | |
Commissioning Software | iMoto_Studio | |
Brake Power Input | 24V brake power input | |
Brake Power Output | Direct motor brake drive without external relay when motor brake current ≤1.5A; external relay required if brake current＞1.5A | |
Braking Resistor Terminal | For external braking resistor connection | |
Fieldbus | Control Mode | Supports speed, position, torque and mixed control modes to meet flexible control requirements for diversified applications |
I/O Interface | DI/DO | 16‑point DI/DO as standard, configurable via EtherCAT fieldbus |
Commissioning Interfaces | Power Output Port | IP20 rated, available for 220V & 380V power output |
Encoder Port | For motor encoder connection | |
Debug Port | USB Type‑C port + PANEL programming keypad connector | |
Communication Interface | EtherCAT IN / EtherCAT OUT | Min. communication cycle: 125μsMax. cable length: 100m100Mbps full‑duplex operation |
Safety Interface | STO Terminal + Safety Circuit | Safe Torque Off wiring terminals |
Mounting & Cooling | Construction | Sheet metal housing + extruded aluminum base heatsink |
Mounting Type | Through‑panel mounting with independent cooling air duct | |
Cooling Method | Forced air cooling | |
Ambient Conditions | Operating Temperature | -10℃ ~ +45℃ |
Operating Humidity | 10%~90%RH, non‑condensing | |
Storage Temperature | -20℃ ~ +65℃ | |
Storage Humidity | 10%~90%RH, non‑condensing | |
Altitude | ≤1000m above sea level | |
Ingress Protection | IP20 for drive main unit; IP54 after equipped with cabinet protective cover | |
Compliance Standard | Certifications | CE, RoHS |
