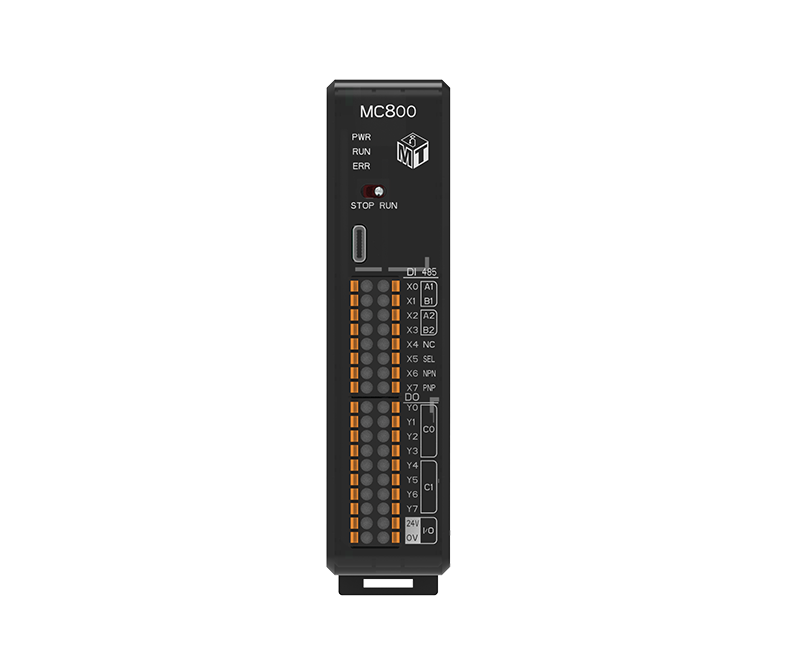

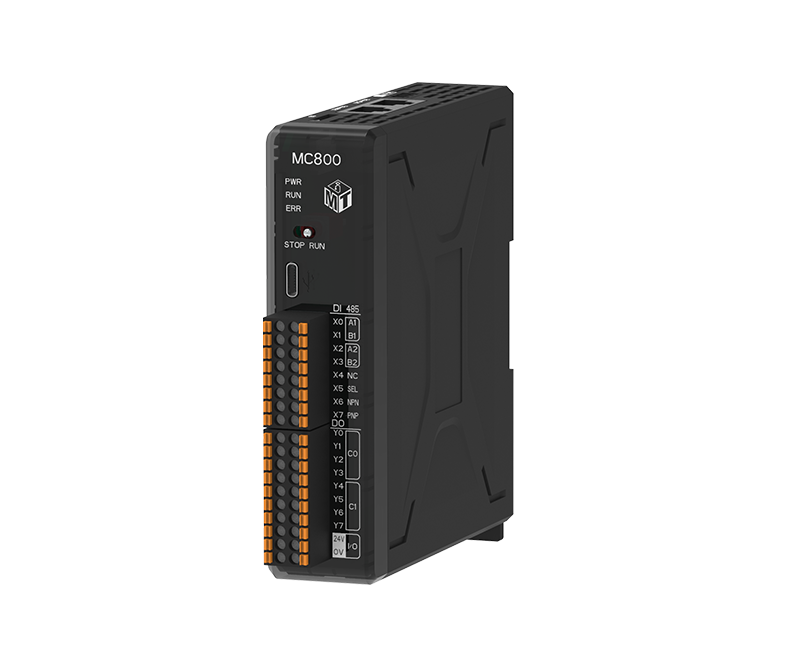

MC800 Series High-performance ARM Platform 16/32/64 axes

Built-in SoftMotion Motion Control Function

The MC800 Series is a universal programmable logic controller from MT. Equipped with SoftMotion motion control functionality, it supports both proprietary development platforms, and complies with the IEC 61131-3 programming standard. Featuring a modular design and extensive function libraries, it is compatible with a wide range of industrial fieldbuses including EtherCAT, EtherNet, Modbus TCP/IP, and RS485 (expandable to 2 channels).

When paired with MT’s multi-axis bus servo systems and remote I/O modules, the MC800 Series provides complete automation solutions widely used in standalone machines and integrated production lines in CNC, packaging, printing, semiconductor, medical and other industries. It enables standardized development, reduces training costs, and enhances production efficiency and control accuracy.

Inquiry Download

Features

Rich Interfaces

Built-in 8 DI and 8 DO channels,1Ethernet port, 1 EtherCAT port and 2RS485 ports; supports up to 192 EtherCATslaves
Powerful Motion Control

EtherCAT bus control supports 32 servoaxes and 32 electronic cam axes with a4ms synchronization cycle forhigh-speed, high-precision motion
Superior Performance

Powered by a 1.2GHz quad-coreprocessor with 1GB RAM and 16GBstorage, delivering fast instructionexecution, quick program loading andreliable complex logic control

Specification

Functional Description		Specifications
Programming Language		IEC 61131-3 programming languages (LD, FBD, IL, ST, SFC, CFC)
Program Execution Mode		Compiled execution
User Program Space		16MB
User Data Capacity		20MB
Retentive Memory Capacity		512KB
SD Card		Supports up to 32GB; supports data logging and user program download
Motion Control Axes		8 axes at 1ms, 16 axes at 2ms, 32 axes at 4ms
Onboard I/O		8-point input, 8-point output
Communication Interfaces	1 x EtherCAT	Protocol: CoE; max. number of slave devices: 192
	1 x EtherCAT	Max. controlled axes: 32
	1 x Ethernet	Protocol types: TCP/IP, Modbus TCP (master/slave)
	2 x RS485	Protocol types: Modbus RTU (master/slave), user-defined protocol
	1 x USB	Micro-USB Type-C; supports USB program download and PLC debugging
General Parameters	Power Consumption	200mA@24V
	Isolation Voltage	3kV opto-isolation between I/O and internal circuits
	Power Input	DC 24V, allowable range: 20.4V ~ 28.8V
	Wiring	I/O wiring: 0.3mm² (22AWG) ~ 1mm² (17AWG)
	Wiring	Recommended wire gauge: 0.3~1mm², crimp terminal length: 10mm
	Mounting	35mm DIN rail mounting
	Dimensions	120mmx110mmx30mm
	Weight	240g
Environment	Operating Temperature	-20~50°C
	Storage Temperature	-25~65°C
	Relative Humidity	5%~95% (non-condensing)
	Protection Class	IP20
	Altitude	Below 2000 meters
