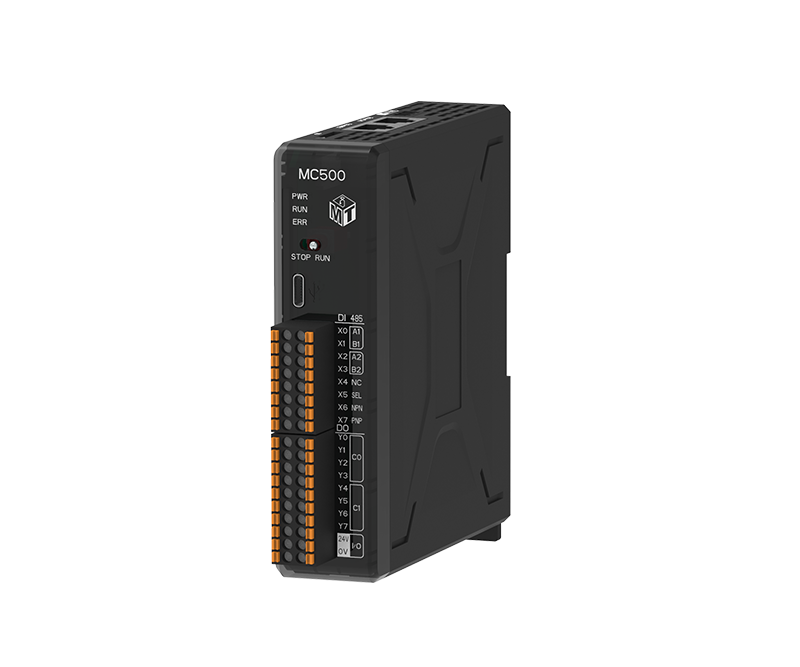

MC500 Series ARM Platform,8/16/32 axes
The MC500 Series is a universal programmable logic controller from MT. Equipped with SoftMotion motion control functionality, it supports both proprietary development platforms , and complies with the IEC 61131-3 programming standard. Featuring a modular design and extensive function libraries, it is compatible with a wide range of industrial fieldbuses including EtherCAT, EtherNet, Modbus TCP/IP, and RS485 (expandable to 2 channels).
When paired with MT’s multi-axis bus servo systems and remote I/O modules, the MC500 Series provides complete automation solutions widely used in standalone machines and integrated production lines in CNC, packaging, printing, semiconductor, medical and other industries. It enables standardized development, reduces training costs, and enhances production efficiency and control accuracy.
Features
-
Rich Interfaces
Built-in 8 DI and 8 DO channels,1Ethernet port, 1 EtherCAT port and 2RS485 ports; supports up to 192 EtherCATslaves -
Powerful Motion Control
EtherCAT bus control supports 32 servoaxes and 32 electronic cam axes with a4ms synchronization cycle forhigh-speed, high-precision motion -
Superior Performance
Powered by a 1.2GHz quad-coreprocessor with 1GB RAM and 16GBstorage, delivering fast instructionexecution, quick program loading andreliable complex logic control
Specification
| Category | Item | Specification |
|---|---|---|
| Basic Functions | Voltage Class | DC24V (21.6V~26.4V) |
| Power Range | 12W~15W | |
| Overload Multiplier | 3 times rated torque | |
| Overload Duration | 3s | |
| Indicators | 1 POWER CHARGE LED, 1 Fault Alarm LED | |
| Temperature Detection | H-bridge temperature monitoring & fault alarm | |
| Control Modes | EtherCAT | EtherCAT CiA 402, minimum cycle time 250μs, support position / speed / torque control |
| PROFINET | PROFINET RT, cycle time 1ms, support position / speed / torque control | |
| Modbus-RTU | RS485, max baud rate 1Mbps, support position / speed / torque control | |
| Environmental Conditions | Operating Ambient Temperature | -10℃ ~ +45℃ |
| Storage Ambient Temperature | -10℃ ~ +65℃ | |
| Operating Humidity | 20% ~ 85% RH (non-condensing) | |
| Storage Humidity | 20% ~ 85% RH (non-condensing) | |
| Protection Rating | — | IP50 |
