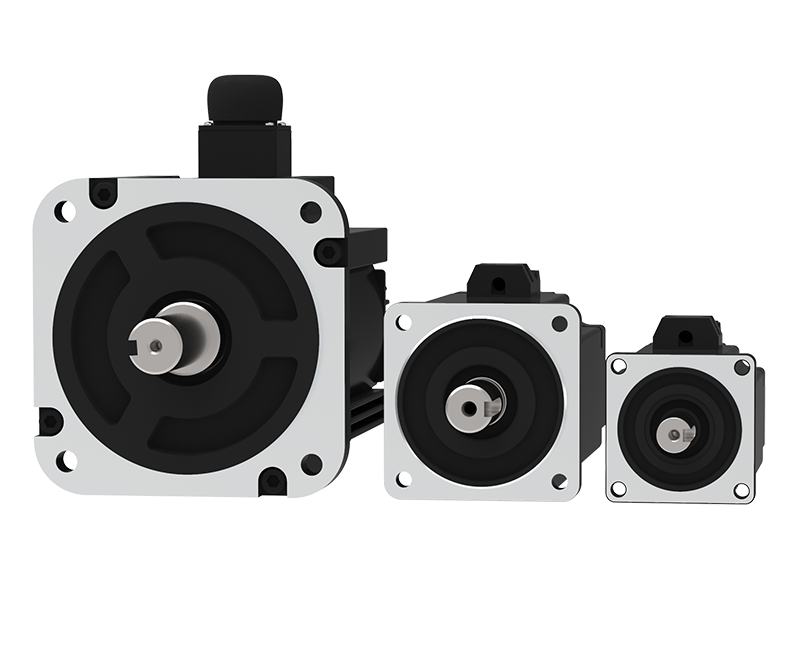

MT5-180M Series Medium-Power Servo Motor

power range ： 2.9kW ~ 7.5kW

The MT5-180M series covers power range from 2.9kW to 7.5kW. It features high precision, fast response, high efficiency, superior reliability, versatile functions and excellent stability. Multiple inertia and speed range configurations are available, and customized encoders can be supplied to meet diverse customer requirements.

Inquiry Download

Features

The use of new type of pole with the way to optimize the magnetic circuit design, reduce the motor cogging torque and the torque ripple;
The winding design uses a compact structure to reduce the winding resistance and motor temperature rise;
According to customer demand, full range of motors match a variety of encoder;
Widely used in textile machinery, CNC machine tools and automation, and other industries.

Specification

MT5 - 180M Flange Medium Inertia Servo Motors

Item MT5-		T180M18615	T180M28415	T180M35015	T180M48015
Flange Size	mm	180	180	180	180
Rated Voltage	V	380	380	380	380
Rated Power	kW	2.9	4.4	5.5	7.5
Rated Torque	N·m	18.6	28.4	35	48
Peak Instantaneous Torque	N·m	55.8	85.2	105	120
Rated Current	Arms	11.9	16.5	20.8	26
Peak Instantaneous Current	Arms	35.7	49.5	62.4	65
Rated Speed	r/min	1500	1500	1500	1500
Max Instantaneous Speed	r/min	3000	3000	3000	3000
Rotor Inertia (Standard / With Brake)	Kg·cm²	63.5 / 69.5	88.5 / 94.5	114.4 / 120.4	136.6 / 142.6
Weight (Standard / With Brake)	Kg	16.7 / 21.2	16.7 / 25.6	25.6 / 30.1	30.8 / 35.3
Shaft Diameter	mm	35	35	35	35
Shaft Extension	mm	79	79	79	79
Motor Body Length (Standard / With Brake)	mm	205 / 252	232 / 279	260 / 307	284 / 331
Motor Code ( 23-bit Encoder)	—	3360	3362	3446	3602
Matching Drive Module Power Range	—	12A(380V)	20A(380V)	20A(380V)	25A(380V)
IP Rating	IP65

Notes

1. MT5-M series motors are available with three encoder configurations:

o 17-bit multi-turn RY magnetic encoder D1 (H1)

o 23-bit multi-turn RY optical encoder U1 (T1)

o 23-bit multi-turn optical encoder U6 (Customized for MT customers) Model codes vary by encoder type. Please clearly specify the encoder type when placing orders.

H1 represents 17-bit single-turn magnetic encoder; T1 represents 23-bit single-turn optical encoder. Single-turn motors can be substituted with multi-turn motors per customer requirements.

2. Minor dimensional tweaks may be implemented during production process optimization. Actual physical dimensions shall be subject to the latest engineering drawing without prior notification.
