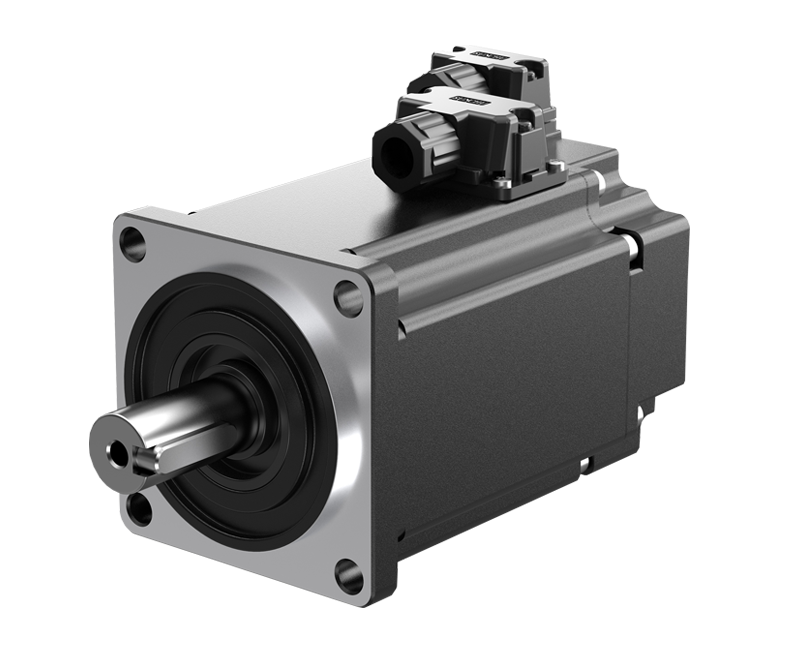

MT8-B Series Low-Power Servo Motor
The MT8-B series covers power range from 0.1kW to 1kW. It features high precision, fast response, high efficiency, superior reliability, versatile functions and excellent stability. Multiple inertia and speed range configurations are available, and customized encoders can be supplied to meet diverse customer requirements.
Features
-
The use of new type of pole with the way to optimize the magnetic circuit design, reduce the motor cogging torque and the torque ripple;
-
The winding design uses a compact structure to reduce the winding resistance and motor temperature rise;
-
According to customer demand, full range of motors match a variety of encoder;
-
Widely used in textile machinery, CNC machine tools and automation, and other industries.
Specification
MT8-B Series Motor Selection Table (40-60-80 Flange)
| Model MT8- | 40B00330 | 60B00630 | 60B01330 | 80B02430 | 80B03230 |
|---|---|---|---|---|---|
| Flange Size [mm] | 40 | 60 | 60 | 80 | 80 |
| Rated Voltage [V] | 220 | 220 | 220 | 220 | 220 |
| Rated Power [kW] | 0.1 | 0.2 | 0.4 | 0.75 | 1 |
| Rated Torque [N·m] | 0.32 | 0.64 | 1.27 | 2.4 | 3.2 |
| Peak Torque [N·m] | 0.96 | 1.92 | 3.81 | 7.2 | 9.6 |
| Rated Current [Arms] | 1 | 1.4 | 2.8 | 5 | 5.5 |
| Peak Current [Arms] | 3 | 4.2 | 8.4 | 15 | 16.5 |
| Rated Speed [r/min] | 3000 | 3000 | 3000 | 3000 | 3000 |
| Peak Speed [r/min] | 6000 | 6000 | 6000 | 6000 | 4500 |
| Rotor Inertia (Standard / Brake) [kg·cm²] | 0.05 / 0.053 | 0.29 / 0.32 | 0.53 / 0.56 | 1.62 / 1.72 | 2.1 / 2.2 |
| Weight (Standard / Brake) [kg] | 0.55 / 0.85 | 1 / 1.4 | 1.3 / 1.7 | 2.5 / 3.5 | 3.2 / 4.2 |
| Body Length (Standard / Brake) [mm] | 79.5 / 112.5 | 77.2 / 109.2 | 93.7 / 125.7 | 105 / 142 | 119 / 156 |
| Motor Code (17/23-bit Encoder) | 1277 / 1276 | 1271 / 1270 | 1359 / 1358 | 1477 / 1476 | 1485 / 1484 |
| Power range for corresponding drive modules | S5R0 | S5R0 | S5R0 | S5R0 | S5R0 |
| IP Rating | IP65 | ||||
