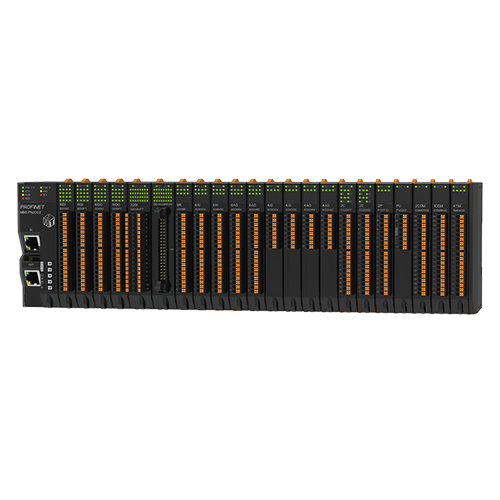

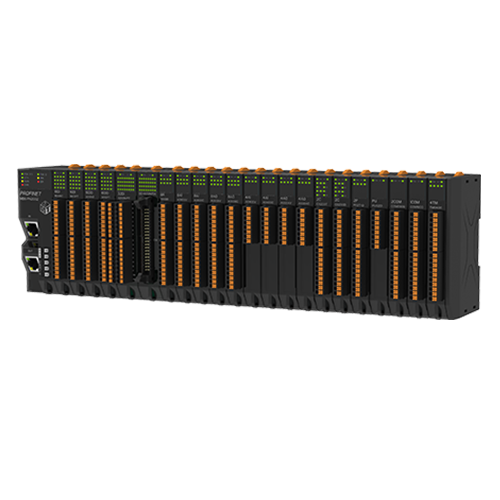

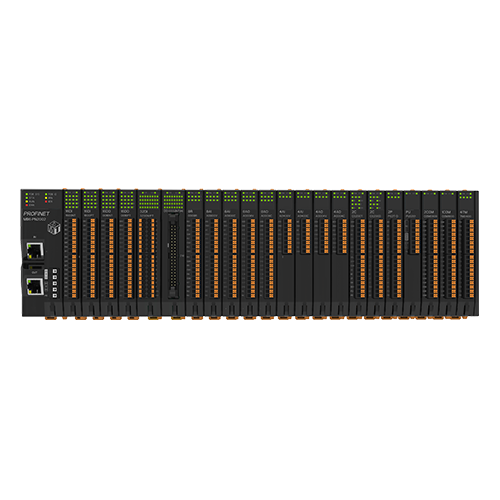

MB6 Series Plug-in (Modular) Remote I/O

Coupler

MB*-PN2002

200

2

2

PROFINET coupler; 2A power supply supports up to 32 modules max.

Digital Input

MB*-1600N/PT

65

2

0

16-point digital input: NPN/PNP type, optical coupling input

MB*-1600NT

65

2

0

16-point digital input: NPN type, optical coupling input

MB*-1600PT

65

2

0

16-point digital input: PNP type, optical coupling input

MB*-3200N/PT

130

4

0

32-point digital input: NPN/PNP type, optical coupling input, bullhorn terminals

MB*-3200N/PT(H)

130

4

0

32-point digital input: NPN/PNP type, optical coupling input, bullhorn terminals

Digital Output

MB*-0016NT

140

0

2

16-point digital output: NPN type, transistor output, 0.8A per channel

MB*-0016PT

140

0

2

16-point digital output: PNP type, transistor output, 0.8A per channel

MB*-0032NT

280

0

4

32-point digital output: NPN type, transistor output, 0.8A per channel

MB*-0032NT(H)

280

0

4

32-point digital output: NPN type, transistor output, 0.5A per channel, bullhorn terminals

MB*-0032PT

280

0

4

32-point digital output: PNP type, transistor output, 0.8A per channel

MB*-0032PT(H)

280

0

4

32-point digital output: PNP type, transistor output, 0.5A per channel, bullhorn terminals

Digital Input & Output

MB*-0808NT

80

1

1

8-point digital output: NPN type, transistor output, 0.8A per channel; 8-point digital input: NPN type, optical coupling input

MB*-0808PT

80

1

1

8-point digital output: PNP type, transistor output, 0.8A per channel; 8-point digital input: PNP type, optical coupling input

Relay Output

MB*-0008R

100

0

1

8-point relay output: contact rated current 2A

Analog Input

MB*-A0400V

110

8

0

4-channel voltage input: 0~5V, -5~5V, 1~5V, 0~10V, -10~10V; 16bit resolution ±0.1% accuracy

MB*-A0800V

110

16

0

8-channel voltage input: 0~5V, -5~5V, 1~5V, 0~10V, -10~10V; 16bit resolution ±0.1% accuracy

MB*-A0400C

90

8

0

4-channel current input: 0~20mA, 4~20mA; 16bit resolution ±0.1% accuracy

MB*-A0400C

90

16

0

8-channel current input: 0~20mA, 4~20mA; 16bit resolution ±0.1% accuracy

Temperature Acquisition

MB*-TM0400

70

16

0

4-channel temperature acquisition: supports thermocouple, thermal resistance, 2-wire, 3-wire types

Analog Output

MB*-A0004V

230

0

8

4-channel voltage output: 0~5V, -5~5V, 1~5V, 0~10V, -10~10V; 16bit resolution ±0.1% accuracy

MB*-A0008V

230

0

16

8-channel voltage output: 0~5V, -5~5V, 1~5V, 0~10V, -10~10V; 16bit resolution ±0.1% accuracy

MB*-A0004C

55

0

8

4-channel current output: 0~20mA, 4~20mA; 16bit resolution ±0.1% accuracy

MB*-A0008C

55

0

16

8-channel current output: 0~20mA, 4~20mA; 16bit resolution ±0.1% accuracy

Pulse Input

MB*-C0200T

50

48

16

2-channel encoder input: pulse counting, supports NPN, PNP, 1.5MHz

MB*-C0200D

50

48

16

2-channel differential encoder input: 10MHz

Pulse Output

MB*-P02T/D

120

10

20

2-channel pulse output: supports NPN, PNP, differential interface

Relay Power Module

MB*-PU0201

60

0

0

Relay power module: 2A capacity, DC24V

Communication Module

MB*-MR01

50

14

18

1-channel communication module: supports Modbus RTU/ASCII/custom protocol (select one of three)

Common Terminal Module

MB*-COM0909

0

0

0

COM1：9pin，COM2：9pin

MB*-COM1800

0

0

0

COM1：18pin，COM2：None

COM1: 18pin, COM2: None
